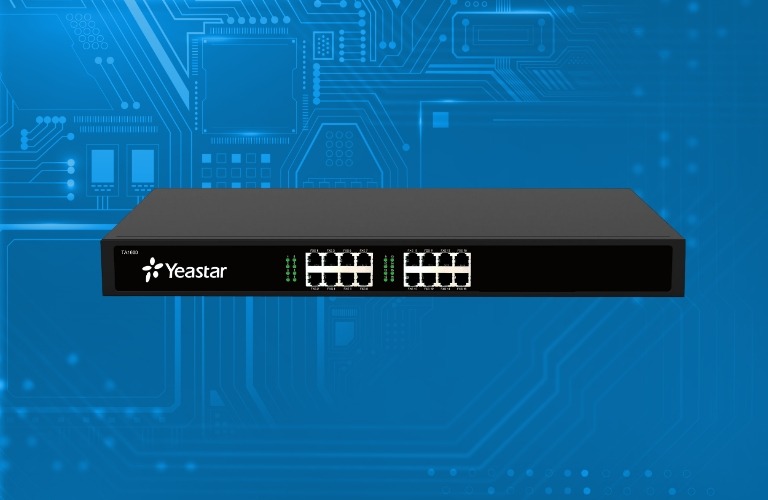

Set up the YeastarNeoGate TA1610 gateway on a desktop, featuring quiet operation. Also, rack mounts the gateway to keep it near your existing equipment or out of the way. The gateway supports T.30 fax and the SIP protocol and is compatible with VoIP phone systems including 3CX, Asterisk,and Microsoft Lync.Yeastar TA1610 supports 16 FXO ports to interface with PSTN or PABX extension port. Suitable for large-scale deployment and management, TA1610 features toll-quality voice call and top performance and reliability. NeoGate TA1610 can be applied by enterprise users, service providers, contact centers, dispatching system, and many more.
NeoGate Analog VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, NeoGate TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into the IP-based system. NeoGate TA helps them to preserve previous investment inthe legacy telephone system and reduce communication costs significantly with the true benefits of VoIP.
- Fully compliant with SIP and IAX2
- Provides high-quality voice compression with industry-standard codecs
- Line echo cancellation for 32, 64 or 128 ms echo delays
- Excellent interoperability with a wide range of legacy and IP equipment
- Yeastar TA1610 Gateway Quick Specs:
- Connections: 16x RJ11 FXO, 1x RJ21 FXS
- Switch Port: 1x 10/100Base-T Ethernet
- Protocol Support: SIP, IAX2
- Audio Codecs: G.711a/u-law, G.722, G.723, G.726, G.729A, GSM
- Fax Codecs: T.30
- Echo Cancellation: yes
- QoS: supported
- Management: via web UI
- Dimensions: 17.32” x 9.84” x 1.73”
- Mounting: desktop, rack
Feastar TA1600 Analog VoIP Gateway Package Contents:
- Yeastar TA1610 device unit
- Power cord:
- Network cable
- Warranty card
- Quick installation guide
- 2x mounting ears
- 8x screws for mounting ears
- Grounding stud and nut
- 4x rubber feet
NeoGate FXO Gateway TA1610 Features:
- 3-way Conference
- Attended Transfer
- Black List
- Blind Transfer
- Call Detail Record (CDR)
- Caller ID Display or Block
- Call Forward: No Answer, Busy, All
- Call Waiting
- Call Status Displaye
- Do Not Disturb
- IP Blacklist
- Network Attack Alert
- Paging
- MWI (FSK, Neon, Polarity)
- RADIUS Accounting & Login
- Real Open API Protocol (Based on Asterisk)
- Voice Menu for Basic Configurations
- SNMP*
- TR-069*
- System Logs
Web-based configuration
Network Attack Alert
Neogate T1600 is a 16 Port Analog (FXS) Gateway.Ideal for small to medium enterprises that wish to connect a legacy PBX to the NBN.Features 3 trigger message waiting. Also suitsHotel/Motel using IPBX and SLT Extensions.
- 16 FXO ports
- Reliable fax performance with T.38
- Flexible calling rules
- Web-based GUI for easy configuration and management
- Yeastar TA1610 supports 16 FXO ports to interface with PSTN or PABX extension port
- Suitable for large-scale deployment and management, TA1610 features toll-quality
- Voice call and top performance and reliability
High Performance
- NeoGate TA1610 is a stand-alone FXO VoIP gateway with carrier-grade features and reliability.
- 16 FXO ports
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Superb voice compression with industry-standard codecs
- Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
- Tested and certified with Elastix, BroadSoft, and others
Simple Management
NeoGate TA1610 has an easy-to-use Web interface which allows super easy and straightforward configuration.
- LED indicators present system and port status visually
- User-friendly Web GUI and intuitive operations
- Comprehensive call log, system logs, hardware logs, and debug logs
Green with Small Footprint
Thanks to 1U form factor and low power consumption, NeoGate TA1610 is suitable for any environment. With less power consumed, it also minimizes the power expense and makes your office green.
- Quiet operation
- Embedded system with low power consumption
- Green and environmental protective
- Automatic Provisioning
NeoGate TA1610 supports PnP or DHCP provisioning by MyPBX and standard open protocol TR-069 and SNMP. Provisioning, monitoring, and management are as easy as a blink.
- PnP or DHCP provisioning by MyPBX
- TR-069 for mass deployment
- Work with any TR-069 compliant ACS
- SNMP for network management and monitoring
Varied IP Applications
NeoGate TA1610 can be applied by enterprise users, service providers, contact centers, dispatching system, and many more.
- PSTN trunking for IP-PBX
- Multi-site solution
ITEM INFORMATION
Yeastar TA1610 supports 16 FXO ports to interface with PSTN or PABX extension port. Suitable for large-scale deployment and management, TA1610 features toll-quality voice call and top performance and reliability.
